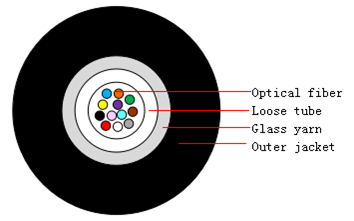

GYFXY Product Structure:
Product Description: GYFXY (Structurewith central tube, Non-metal strength member, PE jacket) Standards: YD/T 769-2010 Outdoor central tube optical cable fortelecommunications Technical Parameters(Typical Value): Fiber Count | Structure | Diameter (mm) | Weight (kg/km) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic | 2-12 | Central tube | 6. 9 | 36. 5 | 600 | 1500 | 300 | 1000 | 10D | 20D | 16-18 | Central tube | 7. 0 | 38. 6 | 600 | 1500 | 300 | 1000 | 10D | 20D | 20-24 | Central tube | 7. 2 | 40. 1 | 600 | 1500 | 300 | 1000 | 10D | 20D |
Note 1.D refers to the cable diameter; 2.The relevanttechnical Parameters can be adjusted according to the customer¡¯s demands; 3.The designflame resistance, anti-rodent, termite resistant cable according to thecustomer¡¯s demands.
|
