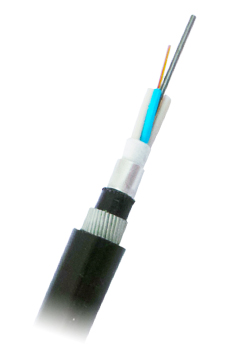

GYTA33-(2-288)Outdoor layer stranded optical cable for telecommunications

Current position：

GYTA33

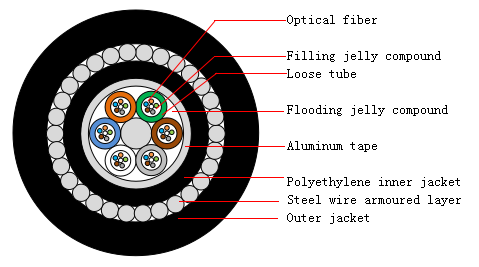

Product Structure:


Product Description:

GYTA33 (Loose tube stranding, Metal strengthmember, Flooding jelly compound, Aluminum-polyethylene adhesive inner jacket,Single smaller round steel wire armoring, PE outer jacket)

Standards:

YD/T901-2009 Outdoor layer stranded opticalcable for telecommunications

Technical Parameters(Typical Value):

Fiber Count	Structure	Diameter (mm)	Weight (kg/km)	Tensile(N) Long Short term term		Crush(N) Long Short term term		Bending Radius(mm) Static Dynamic
2-30	1+5	12.8	268	4000	10000	3000	5000	12.5D	25D
32-36	1+6	13.2	287	4000	10000	3000	5000	12.5D	25D
38-60	1+5	13.9	318	4000	10000	3000	5000	12.5D	25D
62-72	1+6	14.2	334	4000	10000	3000	5000	12.5D	25D
74-84	1+7	15. 1	363	4000	10000	3000	5000	12.5D	25D
86-96	1+8	15. 8	387	4000	10000	3000	5000	12.5D	25D
98-108	1+9	16. 6	437	4000	10000	3000	5000	12.5D	25D
110-120	1+10	17. 2	465	4000	10000	3000	5000	12.5D	25D
122-132	1+11	18. 3	558	4000	10000	3000	5000	12.5D	25D
134-144	1+12	18. 9	583	4000	10000	3000	5000	12.5D	25D
146-216	1+6+12	18. 4	503	4000	10000	3000	5000	12.5D	25D
218-288	1+9+15	20. 5	600	4000	10000	3000	5000	12.5D	25D

Note 1.D refers to the cable diameter;

2.The relevanttechnical Parameters can be adjusted according to the customer’s demands;

3.The block waterway can be adjusted according to the customer’s demands;

4.The designflame resistance, anti-rodent, termite resistant cable according to thecustomer’s demands.
