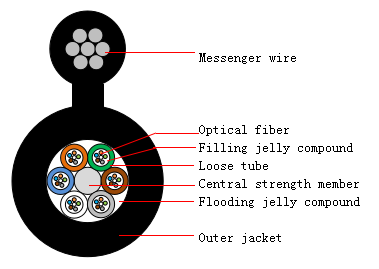

GYTC8Y Product Structure:
Product Description: GYTC8Y (Loosetube stranding, Metal strength member, Flooding jelly compound, PE jacket,figure‘8’ ) Standards: YD/T1155-2011 figure‘8’ Self-Supporting opticalcable for telecommunications Technical Parameters(Typical Value): Fiber Count | Structure | Diameter (mm) | Weight (kg/km) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic | 2-30 | 1+5 | 8. 2×15. 1 | 126 | 1500 | 5000 | 300 | 1000 | 10D | 20D | 32-36 | 1+6 | 8. 6×15. 5 | 139 | 1500 | 5000 | 300 | 1000 | 10D | 20D | 38-60 | 1+5 | 8. 8×15. 7 | 135 | 1500 | 5000 | 300 | 1000 | 10D | 20D | 62-72 | 1+6 | 9. 4×16. 3 | 155 | 1500 | 5000 | 300 | 1000 | 10D | 20D | 74-84 | 1+7 | 10. 3×17. 2 | 166 | 1500 | 5000 | 300 | 1000 | 10D | 20D | 86-96 | 1+8 | 10. 9×17. 8 | 177 | 1500 | 5000 | 300 | 1000 | 10D | 20D | 98-108 | 1+9 | 11. 5×18. 4 | 188 | 1500 | 5000 | 300 | 1000 | 10D | 20D | 110-120 | 1+10 | 12.2×19. 1 | 202 | 1500 | 5000 | 300 | 1000 | 10D | 20D | 122-132 | 1+11 | 12.8×19. 7 | 216 | 1500 | 5000 | 300 | 1000 | 10D | 20D | 134-144 | 1+12 | 13.5×20. 4 | 231 | 1500 | 5000 | 300 | 1000 | 10D | 20D |
|
|
|
|
|
|
|
|
|
|
|
Note 1.D refers to the cable diameter; 2.The relevanttechnical Parameters can be adjusted according to the customer’s demands; 3.The block waterway can be adjusted according to the customer’s demands; 4.The designflame resistance, anti-rodent, termite resistant cable according to thecustomer’s demands.
|
