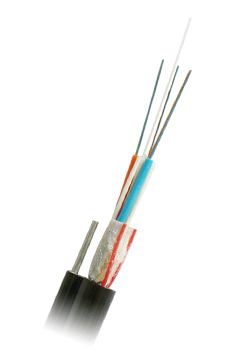

GYFC8Y Product Structure:
Product Description: GYFC8Y (Loosetube stranding, Non-metal strength member, Half dry water-blocking, PE jacket,figure‘8’ ) Standards: YD/T1155-2011 figure‘8’ Self-Supporting optical cable fortelecommunications Technical Parameters(Typical Value): Fiber Count | Structure | Diameter (mm) | Weight (kg/km) | Tensile(N) Long Short term term | Crush(N) Long Short term term | Bending Radius(mm) Static Dynamic | 2-12 | 1+3 | 8. 5×13.0 | 78 | 600 | 1200 | 300 | 1000 | 10D | 20D |
|
|
|
|
|
|
|
|
|
|
Note 1.D refers to the cable diameter; 2.The relevanttechnical Parameters can be adjusted according to the customer’s demands; 3.The block waterway can be adjusted according to the customer’s demands; 4.The designflame resistance, anti-rodent, termite resistant cable according to thecustomer’s demands.
|
